Upgrade kit, PLT 150 (contains: 7004, 3303, 5202), art 5000 upgrade

Full description

The 150 Projectile is equipped with a rubber tip designed to safeguard against impact and minimize the force when it lands. This particular projectile finds common use in medium-range mooring operations and general line transfer tasks. The launching distance it achieves depends on the specific requirements of your line.

When the air cylinder is filled to its maximum pressure of 300 bars (4350 psi), it can support the base unit for a total of 6 maximum pressure launches. Alternatively, if charged to 200 bars (2900 psi), it enables 4 maximum pressure launches.

To fill the air cylinder to 300 bars (4350 psi), simply connect it to a standard scuba diving compressor designed for breathing air, featuring standard 5/8" threads according to DIN 477 specifications. In cases where you're filling from a 200-bar compressor, you'll require Art. No. 1308 Yoke (DIN477) in conjunction with claw adapter Art.no 1315 to create the connection between the air cylinder and the compressor.

With a clean and dry line, this projectile can reach a maximum distance of 140 meters while pulling the line behind itself.

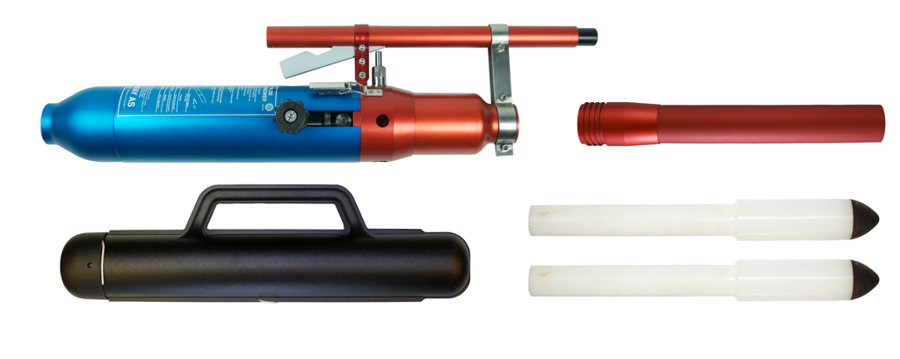

Content

• 1 x PLT® Launching Unit
• 1 x Launching Tube 150
• 2 x Projectiles PLT 150
• 1 x Linebox 3,2mm Nylon
• 1 x USB stick and User Manual
