Medical oxygen cylinder, 2 liter, 200 bar, Pin Index connection, full
Item number 1085377
Medical oxygen cylinders in 2L, 10L and 40L , WP 200 ba.r Class, TPED and DOT approved. The cylinders have a Pin Index valve connection
Full description
Related products
Full description
Cylinder for the storage of medical oxygen for medical use.

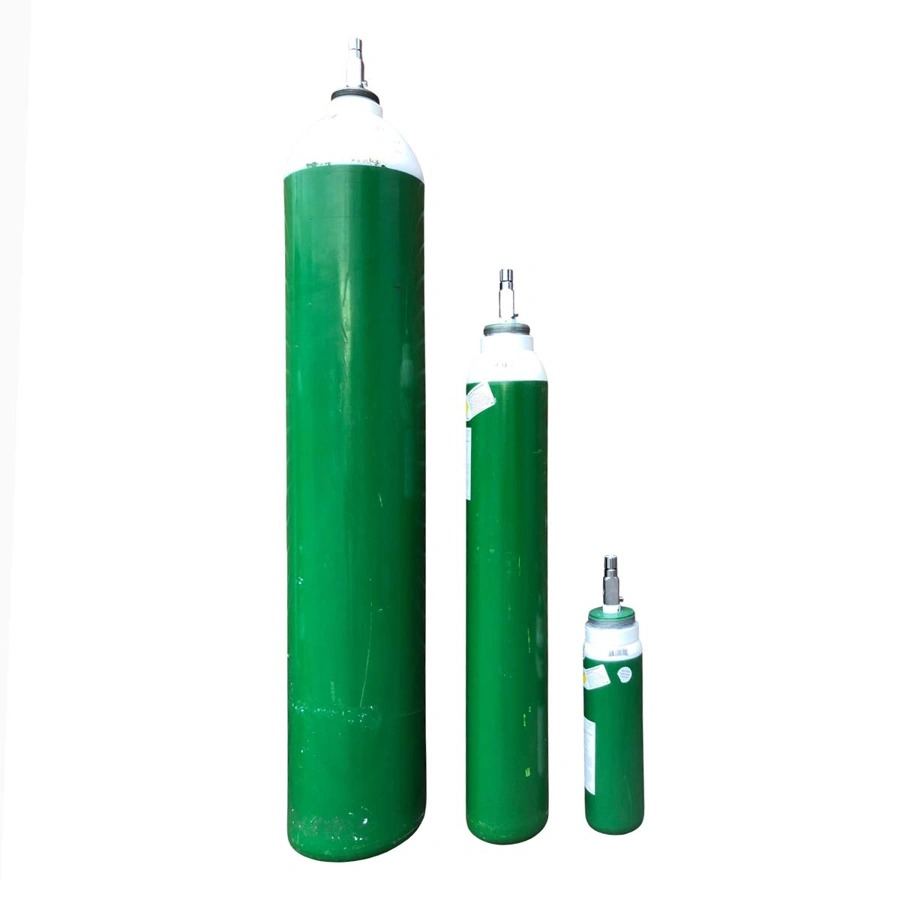

Medical oxygen cylinders are available in 2L, 10L and 40L , WP 200 bar, concave base and neck ring with thread for safety cap.
The 10 and 40 liter medical oxygen cylinders are intended for use in a fixed hospital installation set up. The 2 liter medical oxygen cylinder is intended for use with a portable medical oxygen set.

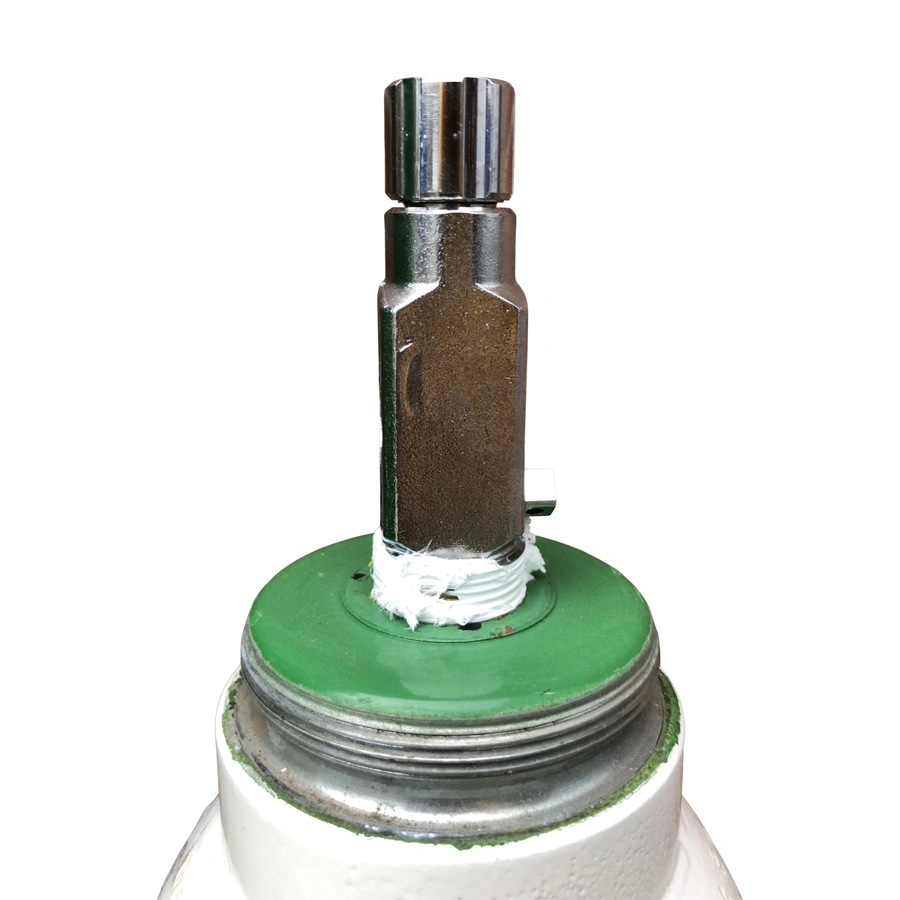

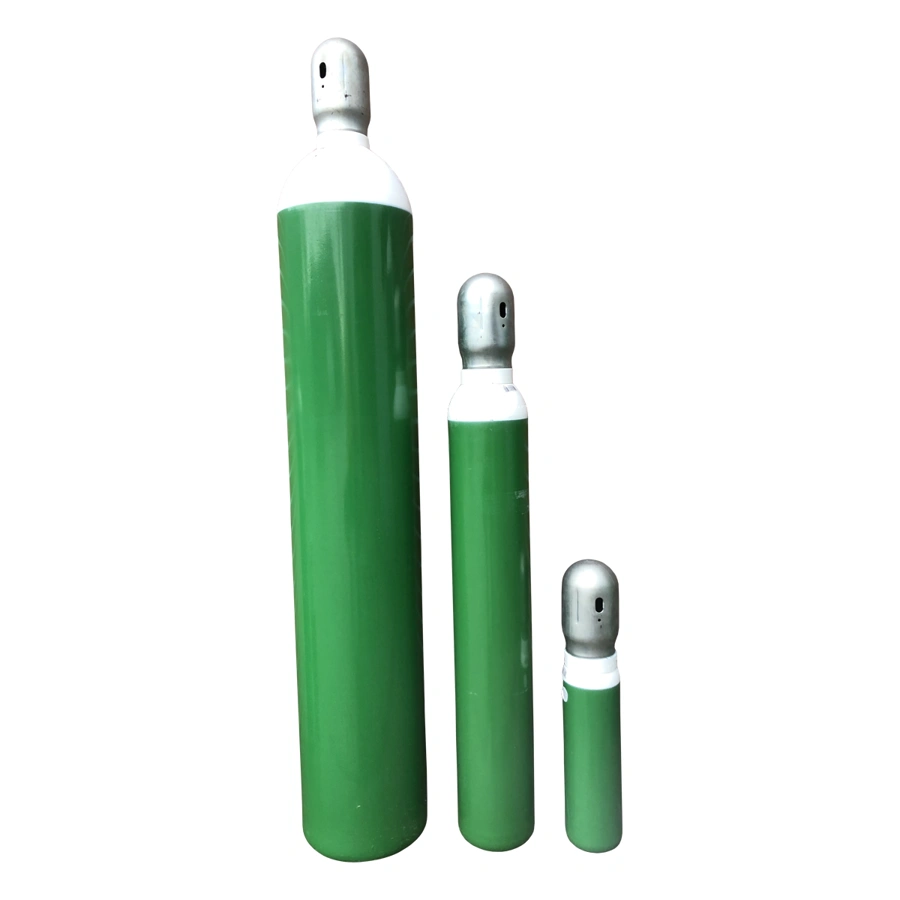

The medical oxygen cylinders are approved by Class Bureau Veritas and TPED and DOT Standards.. The medical oxygen cylinders are available with either a Pin Index valve or a handwheel valve with cylinder connection 5/8" female thread. The medical oxygen cylinders will be delivered with a protection safety cap. The medical oxygen devices comply to the Medical Devices Directive 93/42/EEC.
The medical oxygen valve bodies contain a safety disc 275 bar and a Rest Pressure Valve( RPV).
The medical oxygen cylinders comply to the various Flag regulations.
Specification:
- Cylinder contents: 2 liter
- Work pressure: 200 bar
- Weight Gross : 9 KG
- Dimension: Ø10cm x 46 cm
- UN code : 1072
- Cylinder connection: Pin Index
- Analysis certificate
- Equipment certificate
- According IMO / MFAG and Flag requirements
- Track and Trace administration
Approvals
Datasheets
Certificates
Additional Files
